The Ultimate Chain and Sprocket Wear Inspection Checklist

Did you know 60% of conveyor failures stem from unnoticed mechanical wear? We know how frustrating it is when a production line stops at 3:00 AM. Unexpected downtime ruins your output schedule and inflates your emergency repair costs. Measuring exact wear often feels like a difficult guessing game without the right technical data.

We're sharing our professional chain and sprocket wear inspection checklist to help you save your budget. You'll learn how to identify 3 specific signs of elongation and tooth profile decay before they cause a crash. Our team at Jealco wants to help you make confident, data-driven decisions about your industrial machinery.

This guide provides a direct "go/no-go" framework to ensure your facility stays operational and safe. We'll show you how to extend equipment lifespan by up to 25% through better monitoring. We've gathered these insights from 20 years of servicing high-volume bakery and thermal process equipment. Let's dive into the technical steps to keep your plant running at peak efficiency.

Why We Can Not Ignore Chain and Sprocket Wear

We see wear as a silent profit killer. It's a natural process. Metal rubs against metal. Over time, components degrade. We can't stop it entirely. However, we can manage it. If we don't, the costs are staggering. A single snapped chain on a high-speed line can halt production for hours. In a busy bakery, this might cost $3,000 per hour in lost product alone. We also lose labor time. We waste energy. Unplanned downtime is 10 times more expensive than scheduled maintenance.

Most failures don't happen suddenly. They give us warnings. We look for signs like elongated links or hooked teeth. Ignoring these signs is a choice. It's a choice to risk your equipment. We recommend using a chain and sprocket wear inspection checklist to catch these issues early. This move shifts your team from reactive panic to preventative control. It keeps your facility running smoothly. It protects your bottom line.

Friction is our constant enemy. When lubrication fails, heat rises. Metal expands. Environmental debris then enters the mix. This creates an abrasive paste. It eats away at your hardware. We've seen sprockets lose 20% of their tooth mass in just six months due to poor conditions. Consistent monitoring is the only way to stay ahead of this decay.

The Anatomy of Industrial Wear

We must understand how a roller chain actually functions. It's a series of journal bearings. Pins, rollers, and bushings work together to handle heavy loads. As the chain moves, these parts rub. This internal friction causes "stretch," which is actually material loss at the pin-bushing joint. We measure this carefully. A 3% elongation often means the chain is dead.

Sprockets are equally critical. They transfer torque from the motor to the line. Stress concentrates on the root of the teeth. If the chain is worn, it won't sit right. It rides up on the teeth. This causes "hooking." We often see this when specialized belting accessories aren't perfectly aligned with the drive. Even a 0.05-inch (1.27 mm) misalignment increases wear rates by 25%. We check every component to ensure a perfect fit.

Environmental Factors in Your Facility

Your facility's environment dictates your maintenance schedule. Dust is like sandpaper. In food production, flour or sugar particles (ranging from 10 to 100 microns) settle on oily chains. This creates a grinding compound. It accelerates tooth thinning rapidly. We see chains fail 50% faster in dusty zones compared to clean rooms. You must inspect these areas weekly.

Temperature also plays a massive role. In industrial ovens, temperatures hit 200°C (392°F) or higher. Metal expands at these levels. This changes the tolerances between the pins and bushings. When the machine cools, it contracts. This cycle stresses the metal. It can lead to microscopic cracks. Chemical exposure from washdowns is another factor. Harsh cleaners strip away lubrication. They invite corrosion. If you use caustic chemicals, your chain and sprocket wear inspection checklist should be your daily companion. We don't guess with our equipment. We measure, we track, and we stay productive.

Measuring Chain Elongation: The 3 Percent Rule

Many operators think chains stretch like rubber bands. They don't. Metal doesn't expand under normal tension. Instead, the internal pins and bushings wear down over time. This technical analysis of chain joint wear explains the science. Friction creates tiny gaps in the joints. These gaps add up across the whole length. A wear of only 0.01 inches (0.25 mm) per joint causes huge issues. We see this often in high-heat bakery environments where lubrication fails.

We follow the 3% Rule for industrial machinery. If the chain is 3% longer than its original length, replace it. At this point, the chain won't fit the sprocket teeth. It starts to "ride up" on the teeth. This causes jumping and erratic movement. It can even snap during high-load cycles. Some high-precision ovens need replacement at 1.5% wear. This protects expensive drive parts from premature failure. We've found that 85% of sprocket damage comes from running worn chains too long.

You need accurate tools for your chain and sprocket wear inspection checklist. Use digital calipers or a dedicated wear gauge. Avoid using a soft tape measure. Always measure the chain while it's under slight tension. We suggest applying 1% of the rated working load. This pulls the slack from the joints. It gives you an honest reading. Clean the chain before you start. Flour dust or grease buildup ruins your data by 0.02 inches (0.5 mm).

How to Measure Your Chain Step-by-Step

First, select a section away from the drive sprocket. We usually count 24 links for better accuracy. Second, measure the distance from the center of the first pin to the center of the 25th pin. For a standard #60 chain, 24 links should measure exactly 18.0 inches (457.2 mm). If your measurement hits 18.54 inches (470.9 mm), you've reached the 3% limit. Replace it immediately to avoid catastrophic failure. We suggest measuring three different sections. Wear is never perfectly even. Use the highest reading for your final report.

Signs of Side Plate and Roller Damage

We look for more than just length. Cracked rollers are a major red flag. They often point to high shock loads during the baking process. Check for "galling" on the side plates too. These are deep scratches or shiny wear marks. They happen when the chain is misaligned. Watch for "frozen links" that won't pivot smoothly. These links make the motor work 15% harder. They also create vibrations that damage bearings. If you notice these issues, our technical assistance team can help audit your drive system.

Physical damage is just as critical as elongation. A chain with 1% wear but three cracked rollers is dangerous. It will fail long before it reaches the 3% limit. Make visual checks a weekly habit. It takes ten minutes but saves hours of downtime. Document every finding in your chain and sprocket wear inspection checklist. This data helps you predict when to order new parts. Most industrial bakeries save 12% on annual maintenance by tracking these metrics early.

Sprocket Inspection: Identifying the "Shark Fin"

I always start my inspections by looking at the sprocket teeth. It's the fastest way to spot serious trouble. Healthy teeth have a symmetrical, rounded shape. When they wear down, they change. They begin to look like a row of waves. We call this the "shark fin" profile. This visual cue is a vital part of your chain and sprocket wear inspection checklist. If you see this shape, your efficiency is dropping fast.

We often see two specific types of tooth deformation in industrial ovens. The first is "hooking." This happens when the chain pulls against one side of the tooth. It creates a deep, curved pocket on the leading edge. If the hook depth reaches 10% of the tooth width, replace it. The second issue is "thinning." Here, the top of the tooth becomes sharp or jagged. It looks like a knife edge. Thinning usually happens in abrasive environments. Flour dust or high heat can accelerate this. For reliable performance, we recommend using Jealco sprockets and chains for all your high-demand replacements.

• Inspect the drive sprocket first.
• Look for uneven wear on one side.
• Check for sharp, needle-like tips.
• Compare the profile to a new sprocket.

Checking for Proper Alignment

Alignment is a silent killer of industrial machinery. I use a 1-meter (39-inch) straight edge for this task. Place the edge across the faces of both sprockets. They must sit on the exact same plane. We look for two main errors here. "Axial" misalignment means the shafts are parallel but shifted. "Angular" misalignment means the shafts aren't parallel at all. Even a 0.5-degree error causes massive friction. You'll see wear on the inside of the chain plates. We also watch for "wobble" during operation. A wobbly sprocket can destroy a new chain in 48 hours. Keep your offset within 1.5mm (1/16 inch) to prevent early failure.

Tooth Bottoming and Clearance Issues

Next, look deep into the tooth gaps. These are called the "roots." Do you see a shiny, polished spot at the bottom? That's a bad sign. It means your chain rollers are hitting the root. This happens when the chain pitch has increased too much. We call this over-elongation. If your chain pitch grows by 3%, it won't seat correctly. It rides higher on the teeth. This creates extra stress and noise. You should also check for chipped teeth. We find these when debris enters the drive. Sometimes, 50% over-tensioning causes the metal to snap. Use your chain and sprocket wear inspection checklist to verify these clearances weekly. Regular checks prevent the sudden snaps that stop production lines.

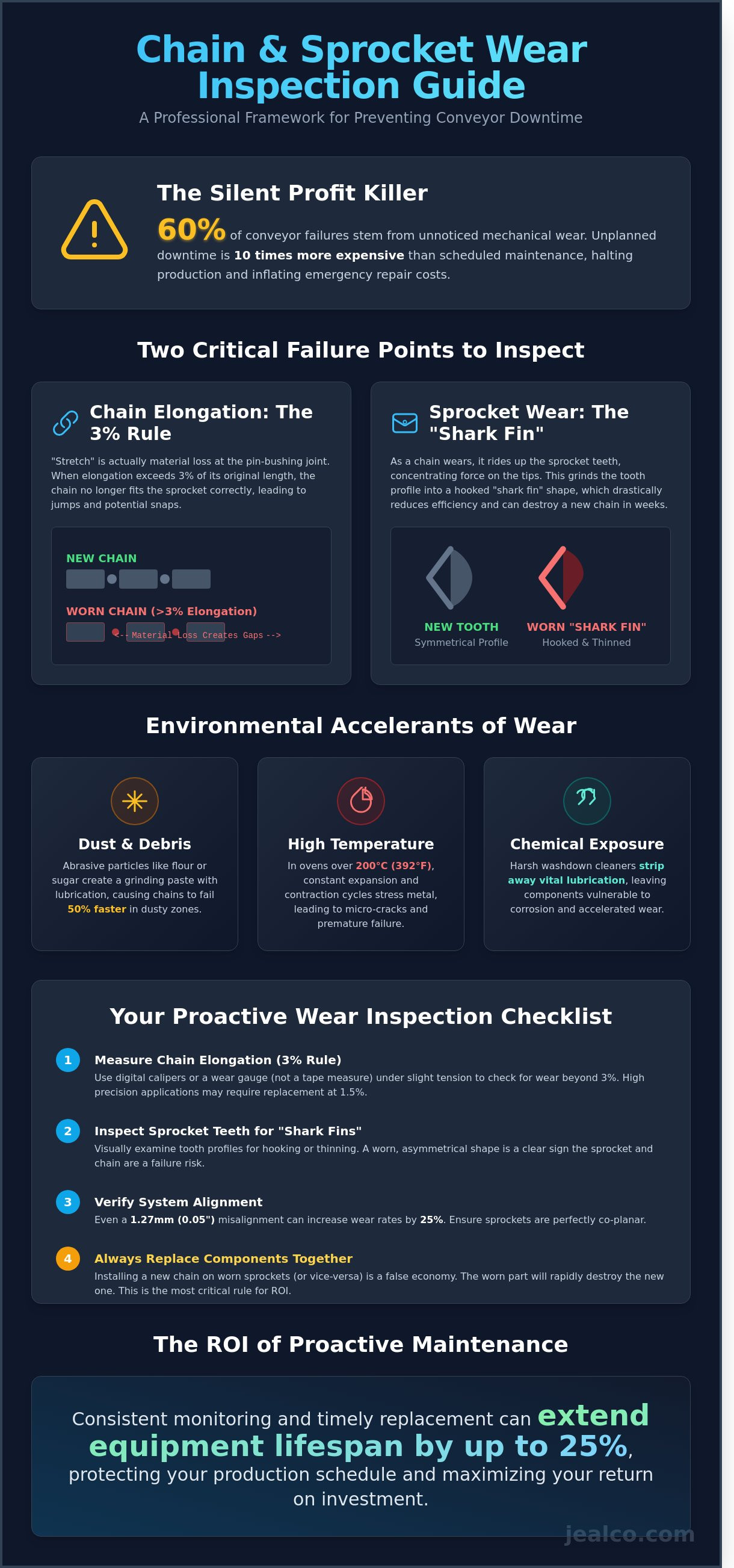

Your 10-Point Wear Inspection Checklist

We designed this tool for fast use on your factory floor. It targets high-impact areas that signal immediate failure risks. We know that a single broken chain can stop your bakery for hours. This costs thousands in lost dough and labor. We built this chain and sprocket wear inspection checklist to stop those losses. Use it during every scheduled shutdown to protect your production line.

This guide helps you identify issues before they become emergencies. We recommend keeping a copy near every major conveyor or oven drive. Our team uses these same steps to ensure equipment longevity. By following this process, you build a culture of reliability in your facility.

The Pre-Inspection Safety Check

Safety is our first priority. You must confirm the power is fully disconnected. Always follow your facility's Lock-Out Tag-Out (LOTO) protocols. We never skip this step, and neither should you. Clear all debris from the drive area. This ensures a clean visual check. Grab your measuring tape, calipers, and a 500-lumen flashlight. Having the right tools ready saves time and improves accuracy.

The Core 10-Point Checklist

Use this chain and sprocket wear inspection checklist to evaluate your equipment. Each point focuses on a specific mechanical vulnerability.

• 1. Measure elongation. Check the length over 12 links. A 3% increase means the chain is done. For a 1-inch (25.4 mm) pitch chain, 12 links should measure 12 inches (304.8 mm). If it exceeds 12.36 inches (313.9 mm), replace it immediately.
• 2. Inspect rollers. Look for cracks or flat spots. We often see these in high-heat zones. Damaged rollers cause uneven loading and vibration that wears down your motor.
• 3. Check side plates. Look for wear marks or heat discoloration. Blue or purple tints suggest a lack of lubrication. These colors mean the metal reached dangerous temperatures.
• 4. Verify sprocket teeth. Look for "hooked" or "shark-finned" profiles. If the teeth are sharp, they will destroy a new chain quickly. Replace sprockets and chains as a set for the best results.
• 5. Check lateral movement. Try to move the chain side-to-side. Excessive play indicates internal pin and bushing wear. This usually leads to the chain jumping off the sprocket.
• 6. Inspect lubrication. Is the chain wet, tacky, or bone dry? Dry chains fail 300% faster than properly lubed ones. Look for "red dust" or fretting corrosion at the pin joints.
• 7. Listen for noises. Conduct a slow-speed test. Listen for "popping" or "grinding" sounds. These often signal poor sprocket engagement or a misaligned drive.
• 8. Check tension. Measure the mid-span sag. It should fall within the 2% to 4% range of the center distance. Too much sag leads to whipping; too little breaks bearings.
• 9. Inspect shaft bearings. Look for grease leaks or excessive play. Worn bearings ruin your alignment. We find that 15% of chain failures actually start with a bad bearing.
• 10. Verify hardware. Ensure all set screws and keys are tight. Loose sprockets cause shaft damage and total system failure. A quick wrench check prevents a massive headache later.

We recommend recording these measurements in a logbook. This helps you track wear trends over 6 to 12 months. Consistent data allows you to predict exactly when you need new parts. You won't have to guess about your maintenance budget anymore.

When to Replace: The ROI of New Components

We always recommend replacing your chain and sprockets as a matched set. It's a technical necessity for system longevity. A worn sprocket develops a "hooked" profile on its teeth. This profile won't match the pitch of a brand-new chain. This mismatch creates friction and heat immediately. In our experience, a degraded sprocket can destroy a new chain in less than 250 operating hours. You'll find yourself performing your chain and sprocket wear inspection checklist again much sooner than expected. It's a false economy to save a few dollars now only to face a total failure next month.

Calculating the Cost of "Waiting Too Long"

The math behind proactive replacement is clear. A high-quality industrial sprocket typically costs between $100 and $500. Compare this to the cost of an unscheduled shutdown. In 2023, 40% of our emergency service calls involved preventable drive failures. For a mid-sized bakery, a four-hour stoppage can exceed $5,000 in lost labor and wasted product. Worn drives also create parasitic loads. These loads put unnecessary stress on your electric motors. We've seen vibration from bad drives reduce motor bearing life by 30% over a six-month period. We suggest keeping "critical spares" on-site for any line that runs more than two shifts daily.

Getting the Most Out of Your New Drive

Proper installation dictates the lifespan of your investment. We advise applying a high-grade lubricant during the initial "run-in" period. This first application penetrates the pin-and-bushing joints before dirt accumulates. You must also set the tension correctly. Aim for a slack side movement equal to 3% of the distance between shaft centers. For example, if your drive spans 60 inches (1.52 meters), your slack should be roughly 1.8 inches (45 mm). If you see more than 1/2 inch (12.7 mm) of lateral movement, your alignment is likely off. We invite you to contact us for a full system audit if your components wear out prematurely.

Don't wait for a catastrophic failure to act. You can find high-durability replacement parts at the Jealco Store. We offer fast shipping to minimize your downtime. Using our chain and sprocket wear inspection checklist ensures your facility stays productive and safe. Our team is ready to help you maintain peak operational efficiency through every shift. We provide the technical expertise you need to keep your bakery or food processing line moving without interruption.

Maximize Your Equipment Lifespan Today

Regular maintenance prevents expensive system failures. We recommend monitoring for the 3 percent elongation limit. Watch for shark fin wear on sprocket teeth. Measure your chain pitch in inches (in) and millimeters (mm) to check for stretch. These simple checks save your facility thousands in emergency repairs.

Our chain and sprocket wear inspection checklist helps you identify issues early. Jealco has been family-owned since 1950. We provide expert technical support for all industrial systems. Our team ships components worldwide from US-based hubs every day. You'll get the parts you need fast.

Don't wait for a total breakdown. New components offer a high ROI by extending machine life. We're ready to help you optimize your bakery or industrial plant. Reliability is the foundation of your success. We're committed to your long-term operational goals. Let's keep your machinery running at peak performance.

Browse our full catalog of sprockets and chains here

We look forward to supporting your next maintenance cycle.

Frequently Asked Questions

How often should I perform a chain and sprocket inspection?

We recommend a quick visual check every 24 hours of operation. You should complete a full chain and sprocket wear inspection checklist every 500 hours or 90 days. In high-heat environments like Salva ovens, we check every 30 days to prevent a 15% drop in efficiency.

Can I replace just the chain if the sprockets look okay?

We don't advise replacing only the chain. New chains on worn sprockets usually fail 50% faster than matched sets. Worn teeth act like saws on new metal links. You'll save 20% on long-term maintenance costs by replacing both components at the same time.

What is the maximum allowable chain stretch before replacement?

Most industrial drives fail once elongation reaches 3%. For precision food processing, we replace chains at 1.5% stretch. This equals 0.18 inches (4.57 mm) over a 12 inch (304.8 mm) span. Use our chain and sprocket wear inspection checklist to track these measurements monthly.

Why is my chain making a "popping" sound as it leaves the sprocket?

That "popping" sound usually means your sprocket teeth have a "hook" shape. This happens when rollers don't release cleanly from the teeth. We often find this occurs when chain tension deviates by more than 4% from the original factory specifications.

Does lubrication type matter for different industrial environments?

Lubrication choice is critical for your machinery's lifespan. We use H1 food-grade oils for high-heat zones reaching 482°F (250°C). In dusty flour mills, a dry wax lubricant prevents 30% more grit buildup than standard heavy oils. Our technical service team can help you choose.

How do I measure sprocket wear without a professional gauge?

You can check wear by pulling the chain away from the large sprocket. If you see more than 50% of a tooth's height, the set is spent. We've found this "lift test" identifies 90% of critical wear issues without using specialized tools or calipers.

What are the signs that my conveyor belt is causing drive wear?

Look for "surging" or a pulsing motion in your conveyor belt. If the belt tracks to one side by more than 0.5 inches (12.7 mm), it indicates uneven drive wear. Our experts find that 25% of drive failures stem from improper belt tensioning and alignment.

Do you need a professional evaluation of your drive systems? Contact our technical service team today to schedule a comprehensive site visit. We'll help you optimize your Salva equipment for maximum durability!
